Single Pump Cementing Unit

Features

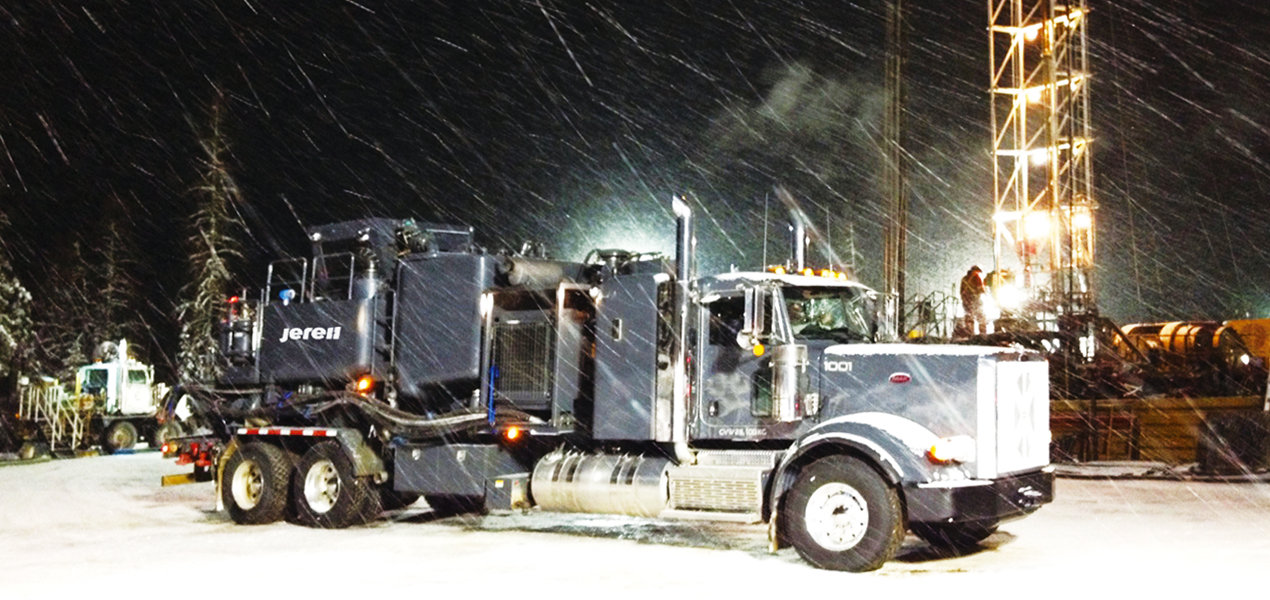

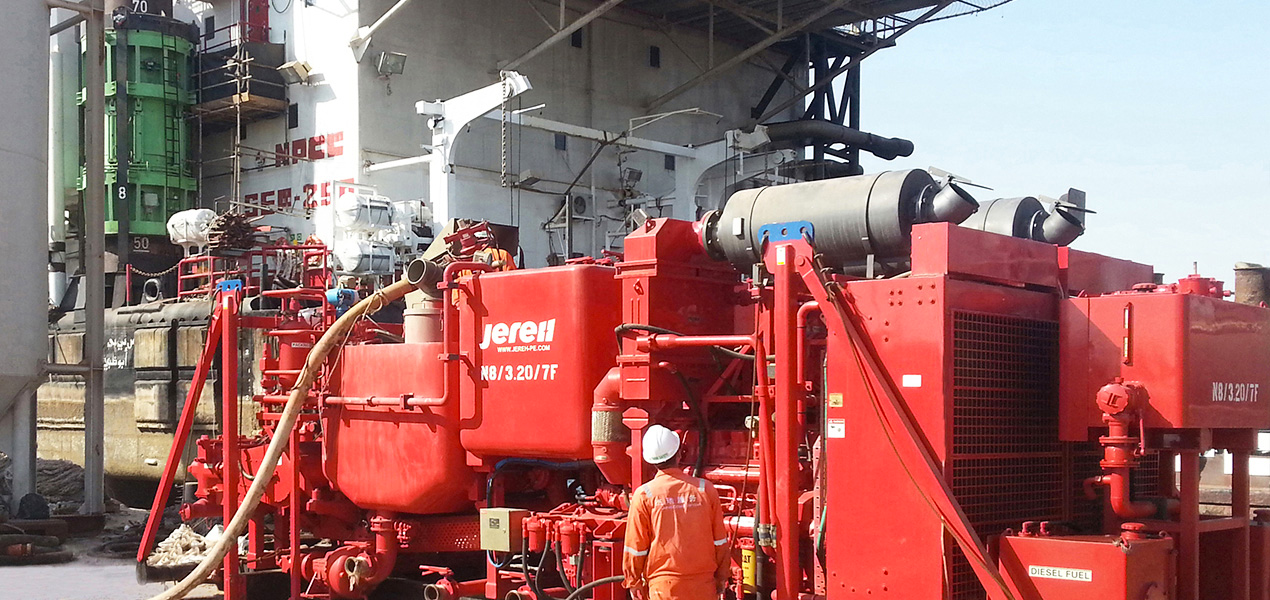

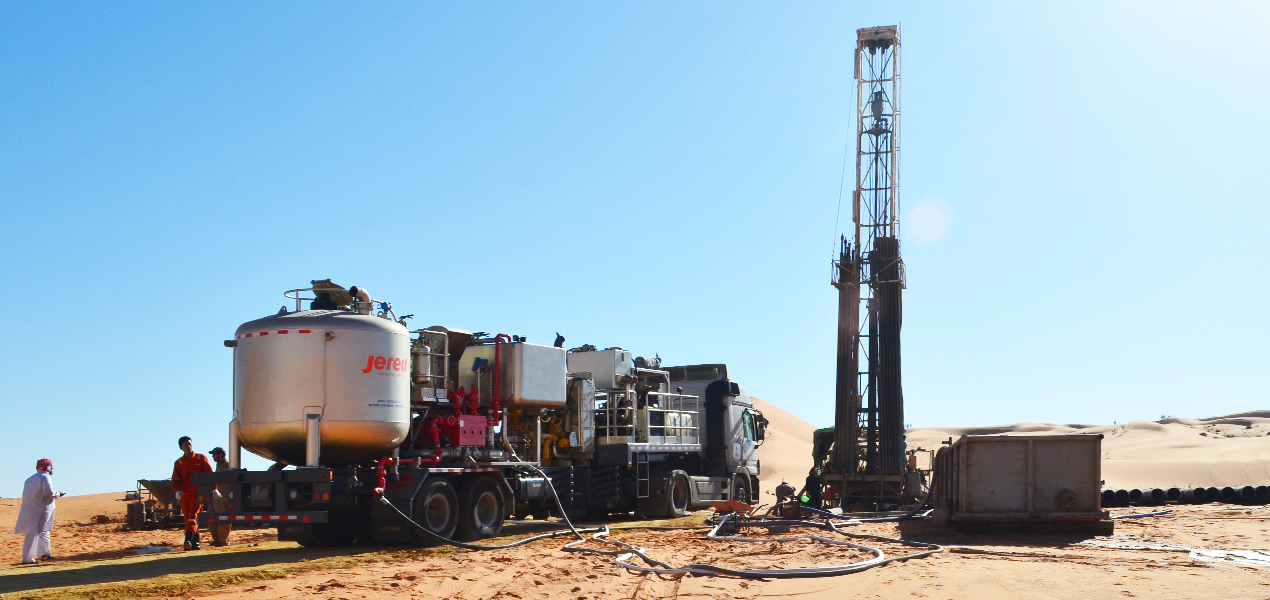

All-weather cementing unit is applicable to various operation conditions such as onshore, offshore, desert, and arctic or extremely hot conditions;

Bivariate automatic mixing system （AMS） controls the density accurately, leading the slurry mixing technology of the industry;

Seamless switching between MANUAL and AUTO control modes changes the operation habits of customers and improves working efficiency, bringing the customers new operation experience;

Professional data acquisition system records, analyzes and stores the operation data in real time;

Professional ergonomic design and protection system enables the comfort, safety and reliability of the unit, enhancing customer satisfaction.

Slide reading

Specifications

Carrier	Truck / Trailer / Skid
Chassis	Mercedes-Benz / MAN / VOLVO / BEIBEN
Engine	DDC S60 / CAT C15
Transmission	ALLISON 4700 OFS
Plunger Pump	JR600N / JR600S			JR500W
Plunger Dia.	3 1/2”	4”	4 1/2”	4”	4 1/2”
Max. Working Pressure	10,394 psi (71.7 MPa)	7,958 psi (54.9 MPa)	6,288 psi (43.4 MPa)	1,4324 psi (98.8 MPa)	1,1318 psi (78.4 MPa)
Max. Working Flowrate	342 gpm (1.3 m³/min)	447 gpm (1.7 m³/min)	566 gpm (2.1 m³/min)	319 gpm (1.2 m³/min)	404 gpm (1.5 m³/min)
Centrifugal Pump	Mixing Water & Water Supply Pump: 4×3×13; Recirculating & Boosting Pump: 6×5×11
Displacement Tank	2×12 bbl (2×2 m³)
Slurry Mixing Tank	10 bbl (1.6 m³)
Slurry Density	8.3~22 ppg (1~2.6 g/cm³)
Max. Mixing Capacity	607 gpm (2.3 m³/min)
Slurry Mixing System	AMS1.6 / AMS2.5
