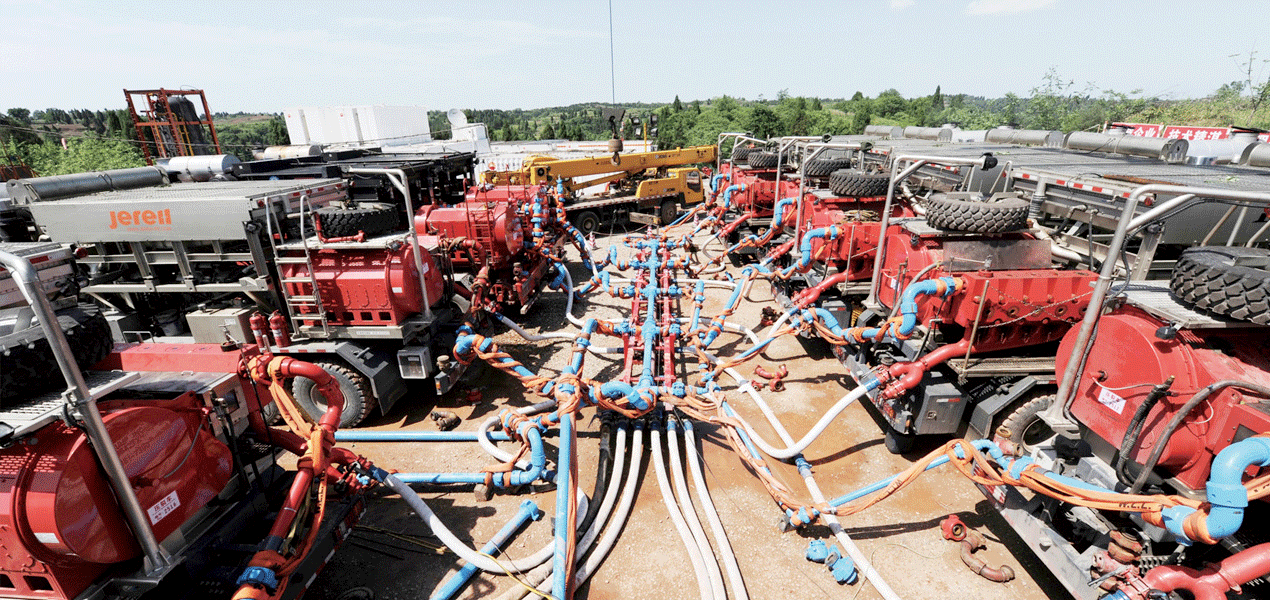

Fracturing Unit

Features

Jereh self-developed Apollo 4500 turbine-driven frac pumper is powered by the turbine engine. Possessing the world's largest single-unit power, it matches with a 5,600hp turbine engine and a 5,000hp fracturing pump, so each Apollo unit with smaller size and lighter weight can output greater power than two traditional diesel engine-driven fracturing units.

Advanced wireless and satellite communication technology achieve real-time and remote data transmission and monitoring, leading the fracturing control technology;

Slide reading

Specifications

2500 HP
3000 HP
2250 HP Fracturing Unit
3300 HP
Apollo

Carrier		Truck / Trailer / Skid
Chassis		Mercedes-Benz / MAN / Sinotruck
Engine		MTU 12V4000S83L / CAT 3512C / CUMMINS QSK50
Transmission		ALLISON 9826 OFS
Plunger Pump		JR2500Q
Plunger Dia.		3 3/4″	4″	4 1/2″	5″
Max. Working Pressure	MPa	120.2	105.6	83.4	67.6
	psi	17,422	15,313	12,099	9,800
Max. Discharge Flowrate	m³/min	2.17	2.46	3.12	3.85
	gpm	573	650	824	1,017
Rated Output Power		1,680 kW (2250 hp)

Carrier		Truck / Trailer / Skid
Chassis		Mercedes-Benz / MAN / Sinotruck
Engine		MTU 16V4000S83 / CAT 3516C / CUMMINS QSK60
Transmission		Twin Disc 8FLW-2302 Torque Converter+TA90-8501 / Twin Disc TA90-7601C / ALLISON 9832 OFS / CAT TH55
Plunger Pump		JR2800Q				JR2800QP
Plunger Dia.		3 3/4″	4″	4 1/2″	5″	4″	4 1/2″	5″
Max. Working Pressure	MPa	137.9	125.8	99.4	80.5	137.9	113	91.6
Max. Working Pressure	psi	20,000	18,247	14,418	11,678	20,000	16,392	13,277
Max. Discharge Flowrate	m³/min	2.17	2.47	3.13	3.86	2.85	3.6	4.45
Max. Discharge Flowrate	gpm	573	653	827	1,020	753	951	1,176
Rated Output Power		1,860 kW (2,500 hp)

1,176
Rated Output Power		1,860 kW (2,500 hp)

Carrier		Truck / Trailer / Skid
Chassis		Mercedes-Benz / MAN / Sinotruck
Engine		MTU 12V4000S83 / CAT 3512C / CUMMINS QSK50
Transmission		ALLISON 9823 OFS
Plunger Pump Model		JR2250			JR2500Q
Plunger Dia.		4″	4 1/2″	5″	3 3/4″	4″	4 1/2″	5″
Max. Working Pressure	MPa	125.8	99.4	80.5	120.2	105.6	83.4	67.6
Max. Working Pressure	psi	18,247	14,418	11,678	17,422	15,313	12,099	9,800
Max. Discharge Flowrate	m³/min	1.48	1.87	2.31	2.17	2.46	3.12	3.85
Max. Discharge Flowrate	gpm	391	494	610	573	650	824	1,017
Rated Output Power		1,490 kW (2,000 hp)

Carrier		Truck / Trailer / Skid
Chassis		Mercedes-Benz / MAN /Sinotruck
Engine		MTU 16V4000S83L
Transmission		CAT TH55
Plunger Pump		JR4000P
Plunger Dia.		4 1/2″	5″
Max. Working Pressure	MPa	137.9	111.7
	psi	20,000	16,200
Max. Discharge Flowrate	m³/min	2.9	3.58
	gpm	766	946
Rated Output Power		2,320 kW (3,100 hp)

Carrier		Truck / Trailer / Skid
Chassis		BENZ / KENWORTH / MAN
Engine		MTU
Transmission		JEREH Super Gearbox
Plunger Pump Model		JR5000QP
Plunger Dia.		4″	4-1/2″	5″
Max. Working Pressure	MPa	138	110	88
	psi	20,000	15,950	12,760
Max. Discharge Flowrate	m³/min	2.54	3.21	3.96
	gpm	670	848	1047
Rated Output Power		3,355 kW (4,500 hp)
