2250 HP Super Power Cementing Unit
Features

Jereh self-developed IAMS 3.0 mixing system permits the automatic control of engine throttle and transmission gear as per the set pressure and flowrate, improving operational efficiency.

Only one unit is available to meet the operation requirements (8,700 psi & 317 gpm), dramatically reduces the cost, suitable for the applications of high pressure and large displacement.

Smart unit saves footprint and helps arrangement on site.

Slide reading
Specifications
CarrierTruck / Trailer / Skid
ChassisMAN / Mercedes-Benz / VOLVO
EngineMTU 12V4000 / CAT 3512
TransmissionALLISON 9823 OFS
Plunger PumpJR2250 Triplex Plunger Pump
Plunger Dia.4”4 1/2”5”6”
Max. Working Pressure18,247 psi
(125.8 MPa)		14,418 psi
(99.4 MPa)		11,678 psi
(80.5 MPa)		8,110 psi
(55.9 MPa)
Max. Flowrate391 gpm (1.5 m³/min)494 gpm (1.9 m³/min)610 gpm (2.3 m³/min)878 gpm (3.3 m³/min)
Centrifugal PumpMixing Water & Water Supply Pump: 4×3×13; Recirculating & Boosting Pump: 6×5×11
Displacement Tank2×12 bbl (2×2 m³)
Slurry Mixing Tank11.3 bbl (1.8 m³)
Slurry Density8.3~22 ppg (1~2.6 g/cm³)
Max. Mixing Capacity607 gpm (2.3 m³/min)
Slurry Mixing SystemAMS1.6 / AMS2.5 / IAMS3.0


Successful Cases
Slide reading

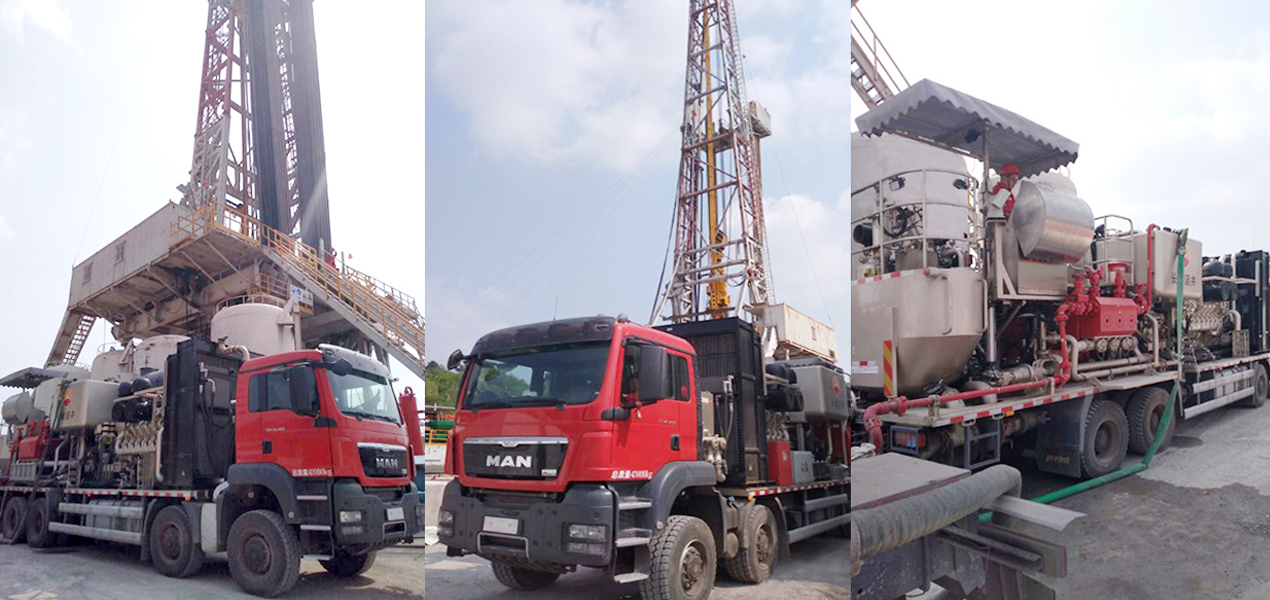

Jereh Super Power Cementing Unit for Shale Gas E&P in Sichuan
